Craftsman Cable & Drum Replacement: The Houston Owner’s Guide

We stock and install Craftsman-compatible cable and drum assemblies throughout Houston, and most replacements run $130 – $250 installed, parts and labor included. We can usually get to you same-day for a cable and drum swap. The way most homeowners discover this part has failed is simple: the door suddenly sits crooked in the opening, or one cable is loose and the other is guitar-string tight.

Call (903) 989-4180

Here’s the honest truth about Craftsman cable and drum failures: the cable itself rarely snaps on its own. What usually happens is a worn drum or a frayed cable stops letting the door lift evenly, and the tension shifts. Once that happens, you’re not just looking at a door that won’t open. You’re looking at a door that’s fighting itself every time it moves, and that strain lands on the spring, the rollers, and the opener motor. We see it all over Houston, from Katy to Spring Branch, especially in summer when the heat makes cables lose a little flex and the drums collect more grime. Call us at (903) 989-4180 and we’ll tell you over the phone whether it sounds like a cable and drum job or something simpler.

Which Craftsman Models This Applies To

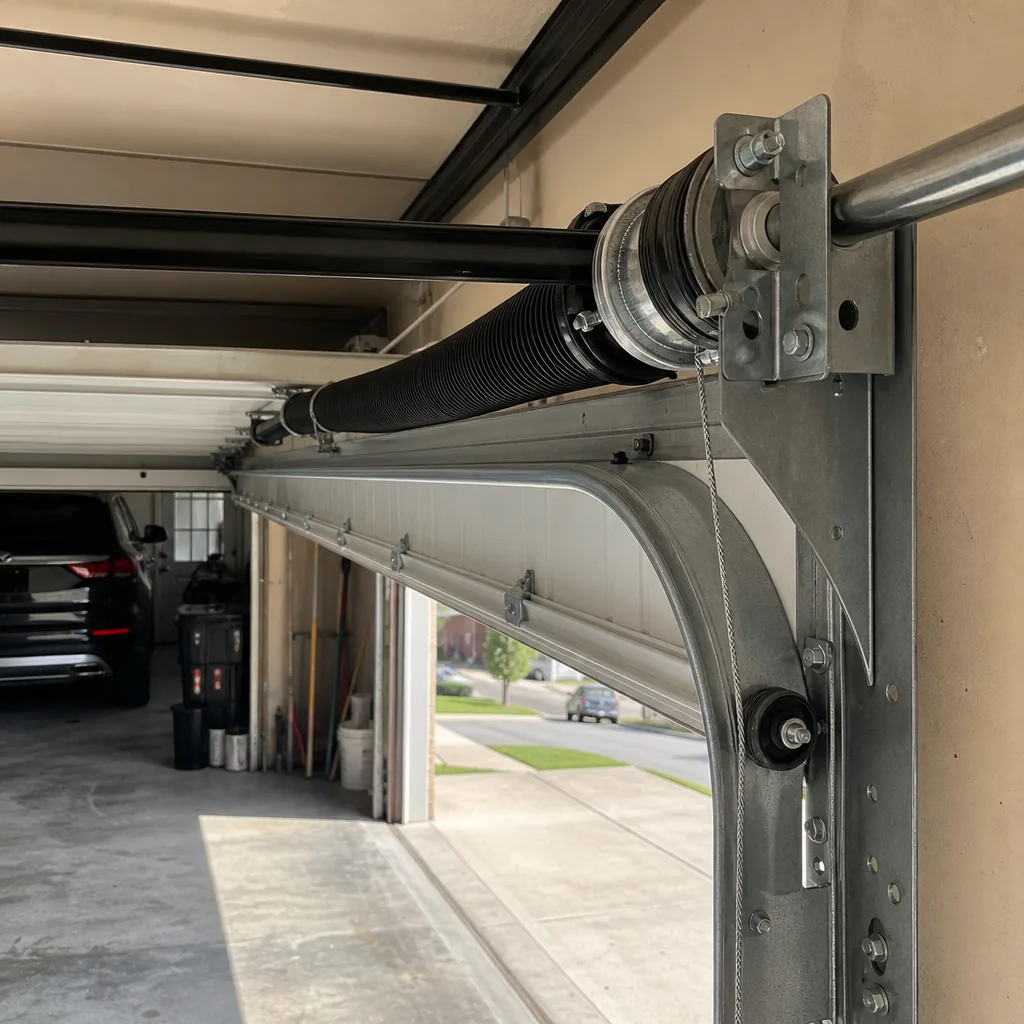

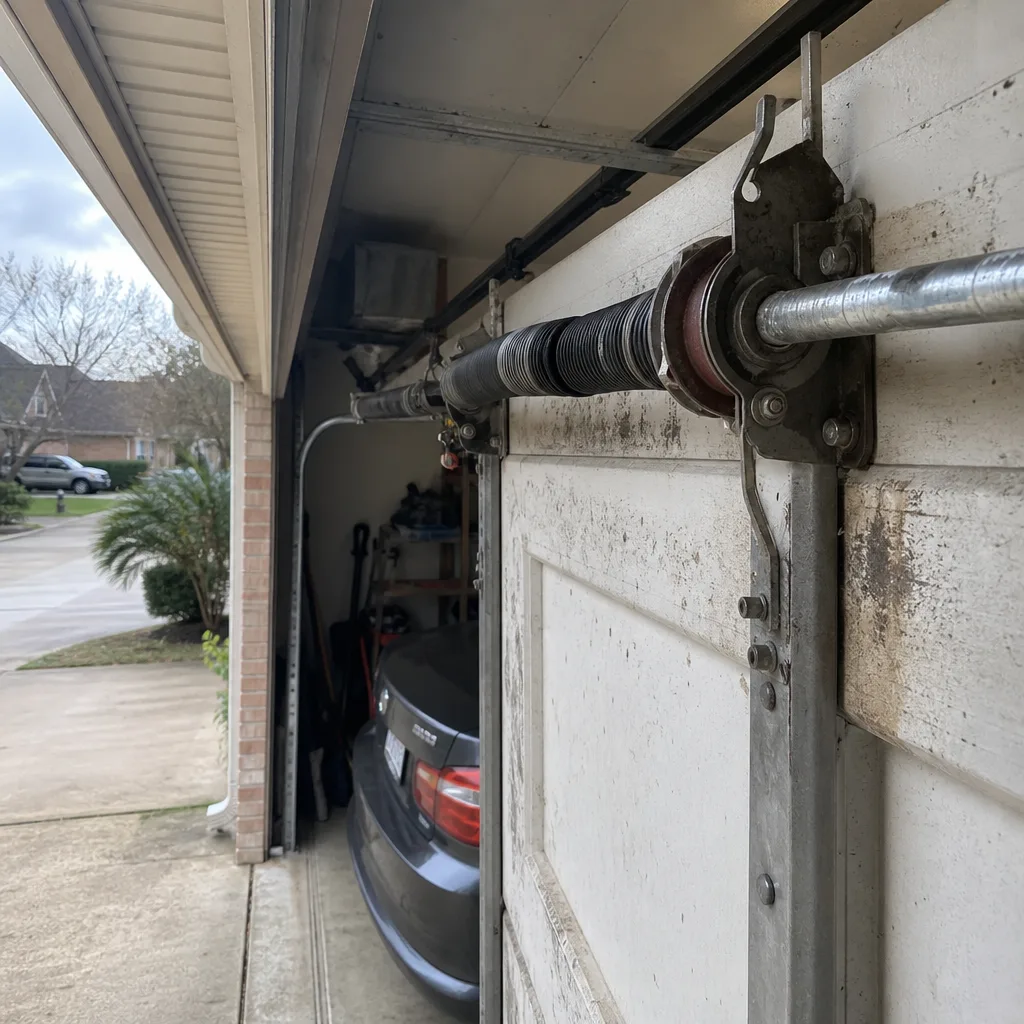

Most Craftsman garage doors built since the mid-1990s use a torsion system with two cables, one on each side, winding onto drums above the door. The exact cable length and drum profile depend on door height, door weight, and spring size. If your door is a standard 7-foot residential door, you’re almost certainly looking at a cable length between 8’6″ and 9’6″ and a drum with a 4-inch outer diameter. If it’s an 8-foot door, the cable gets longer and the drum often steps up to a 5-inch profile.

Here’s the Craftsman gotcha most people miss: Craftsman didn’t manufacture their own doors for most of the brand’s life. Depending on the year, your Craftsman-labeled door was likely built by Clopay, Amarr, or Wayne Dalton, and the cable and drum specs follow the door maker, not the Craftsman name on the sticker. That means you can’t just buy “Craftsman cables” and expect a match. You match the cables to the door height, the drum to the spring’s wire size and inside diameter. If you’re not sure what you have, there’s usually a label on the end hinge or the bottom section with a model number. Read it to us over the phone and we can usually identify the right part before we even roll out. We also stock parts for LiftMaster, Chamberlain, and Genie, so if you’ve got a mixed setup, we can still handle it.

Signs Your Craftsman Cable & Drum Replacement Is Failing

• Door lifts unevenly or one side lags. One cable has lost tension or slipped off the drum, so one side of the door is doing all the work. The door will fight the track and the opener every cycle.
• Loose, hanging, or visibly frayed cable. If you see slack in a cable when the door is closed, the drum isn’t taking up line like it should. Either the drum is stripped or the cable has jumped its groove.
• Scraping, popping, or grinding when the door moves. A cable that has jumped the drum drags against the track or the panel. A drum that’s worn egg-shaped will bind and release as it turns.
• Door jerks or stalls halfway up. The drum isn’t releasing cable cleanly, so the lift is jerky and the opener works against itself. This is one of the fastest ways to burn out an opener motor.
• Cable shows rust, kinks, or broken strands near the bottom fixture. Houston humidity and salt air if you’re close to Galveston Bay are rough on cables. Once you can see broken strands, the cable is done. It won’t get better, and it can let go completely.

Replacement Cost & What’s Included

In Houston, a Craftsman cable and drum replacement typically runs $130 – $250 installed. The range comes down to a few things: whether it’s just the cables or the drums too, whether it’s a standard 7-foot door or something taller, and whether the spring needs resetting after the cables are re-run. If we’re doing the full assembly, cables and drums on both sides, you’re looking at the upper end of that range. If it’s one cable on a standard door, you’re at the lower end.

The price we quote is the price you pay. That’s the Kingswell standard. We write the number down before any work starts, and it includes parts, labor, and cleanup. No surprise line items when the job’s done. Every cable and drum replacement we do also carries the 365-Day Done Right Promise: if it fails within a year, we come back and make it right at no charge, in writing. Marcus Ellery doesn’t put a part on your door he wouldn’t put on his own, and that standard extends to every member of our crew.

DIY or Call Us?

We’ll level with you. You can inspect the cables without touching anything dangerous. Look for fraying, rust, slack, or a door that’s sitting crooked. What you should not do is try to re-seat a cable on a drum yourself. The torsion spring holds hundreds of pounds of stored force. If the cable came off because the spring shifted or the drum let go, that spring can unwind violently. There’s a real risk of serious hand, face, or arm injury. We’ve been called out after DIY attempts more times than we can count, and the repair always costs more than it would have the first time.

What you can do is call us. Tell us what you’re seeing. Marcus will give you a straight read on whether it’s a cable, a drum, or something else entirely. If it sounds like a cable and drum job, we’ll get it on the schedule and most Houston calls can be handled same-day. The number is (903) 989-4180.
